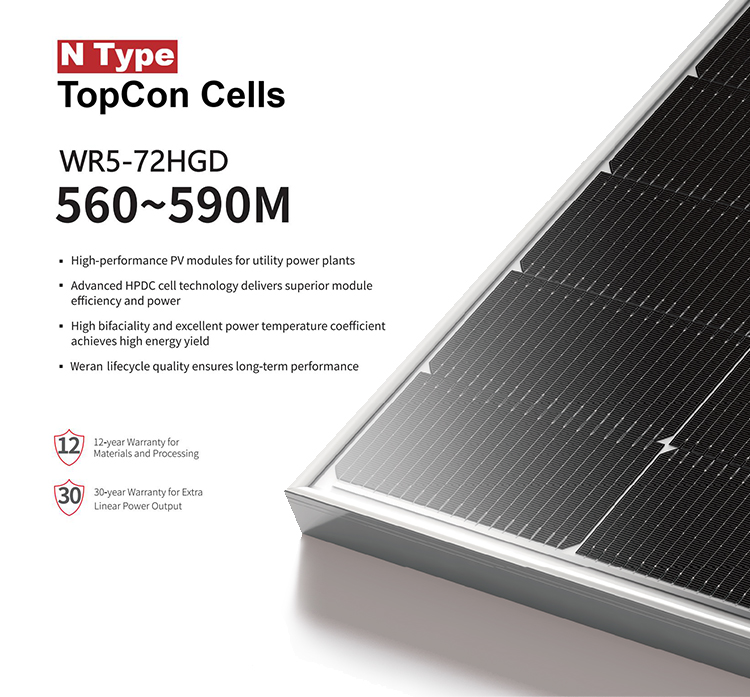

The WERAN WR5-72HGD series solar panels utilize the latest TOPCon technology, which gives this series a higher module power generation efficiency, as well as lower degradation of conversion efficiency, and excellent power temperature coefficient. This makes the product highly suitable for commercial and industrial projects. This series provides a 12-year product warranty and a 30-year warranty for ExtraLinear Power Output, providing ample assurance for your projects.
Model :
WR5-72HGD 560-590MPower range :
560-590wMinimum order quantity :
1 pallet (36 pcs)Max efficiency :
22.8%Cell orientation :
144 (6×24)Dimensions :
2278×1134×30mmWeight :
31.8kgCertificate :
CE, TUVWarranty :
30 YearsPackaging :
36pcs per pallet / 180pcs per 20’GP / 720pcs per 40’HCPayment :
T/T, L/C, Western Union, Alibaba.com Pay
| Test conditions | STC : AM1.5 1000W/m² 25℃ Test uncertainty for Pmax:±3% | ||||||
| Module Type | WR5-72HGD-560M | WR5-72HGD-565M | WR5-72HGD-570M | WR5-72HGD-575M | WR5-72HGD-580M | WR5-72HGD-585M | WR5-72HGD-590M |
| Testing Condition | STC | STC | STC | STC | STC | STC | STC |
| Maximum Power (Pmax/W) | 560 | 565 | 570 | 575 | 580 | 585 | 590 |
| Open Circuit Voltage (Voc/V) | 50.99 | 51.09 | 51.19 | 51.3 | 51.41 | 51.52 | 51.63 |
| Short Circuit Current (Isc/A) | 13.89 | 13.97 | 14.05 | 14.14 | 14.22 | 14.3 | 14.38 |
| Voltage at Maximum Power (Vmp/V) | 42.82 | 42.91 | 43 | 43.11 | 43.22 | 43.33 | 43.44 |
| Current at Maximum Power (Imp/A) | 13.08 | 13.17 | 13.26 | 13.34 | 13.42 | 13.51 | 13.59 |
| Module Efficiency(%) | 21.7 | 21.9 | 22.1 | 22.3 | 22.5 | 22.6 | 22.8 |
| Electrical characteristics with different rear side power gain (reference to 575W front) | |||||
| Pmax /W | Voc/V | lsc/A | Vmp/V | lmp/A | Pmax gain |
| 604 | 51.30 | 14.84 | 43.11 | 14.00 | 5% |
| 633 | 51.30 | 15.55 | 43.11 | 14.67 | 10% |
| 661 | 51.40 | 16.26 | 43.21 | 15.34 | 15% |
| 690 | 51.40 | 16.96 | 43.21 | 16.01 | 20% |
| 719 | 51.40 | 17.67 | 43.21 | 16.67 | 25% |

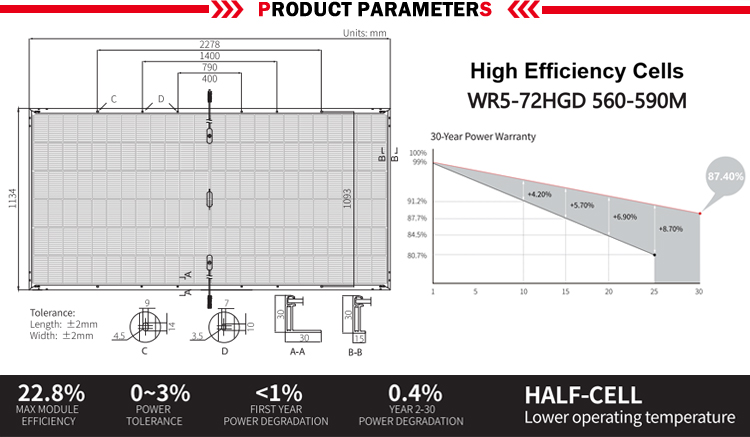

Mechanical Parameters
| Cell Orientation | 144 (6×24) |
| Junction Box | IP68, three diodes |
| Output Cable | 4mm²,+400, -200mm/±1400mm length can be customized |
| Glass | Dual glass, 2.0+2.0mm heat strengthened glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 31.8kg |
| Dimension | 2278×1134×30mm |
| Packaging | 36pcs per pallet / 180pcs per 20'GP / 720pcs per 40'HC |
Operating Parameters
| Operational Temperature | -40℃ ~ +85℃ |
| Power Output Tolerance | 0 ~ 3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 30A |
| Nominal Operating Cell Temperature | 45±2℃ |
| Protection Class | Class II |
| Fire Rating | UL type 29 IEC Class C |
Mechanical Loading
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
Temperature Ratings（STC）
| Temperature Coefficient of Isc | +0.045%/℃ |
| Temperature Coefficient of Voc | -0.230%/℃ |
| Temperature Coefficient of Pmax | -0.280%/℃ |
