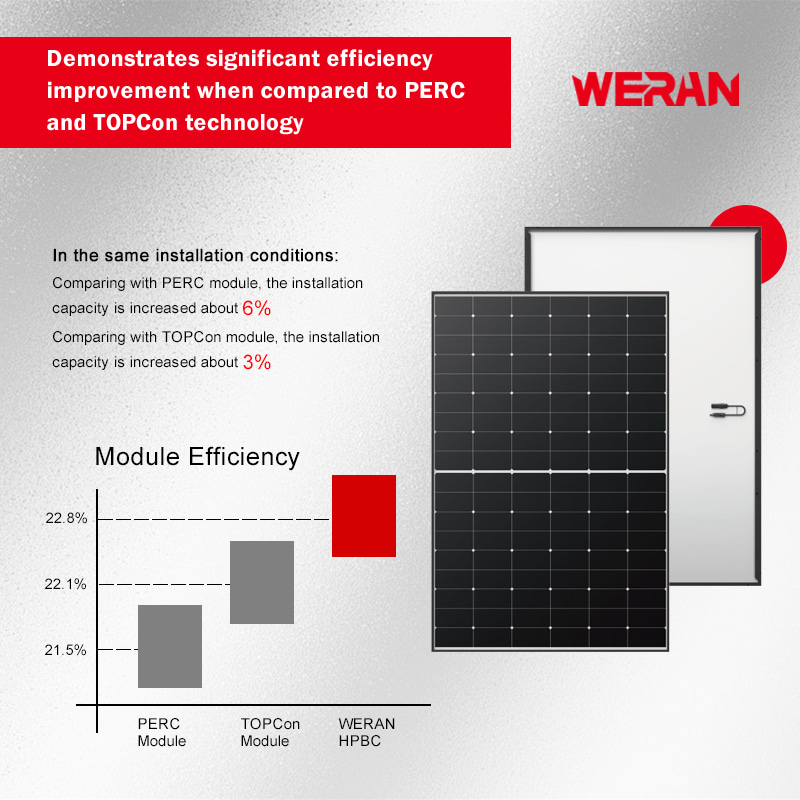

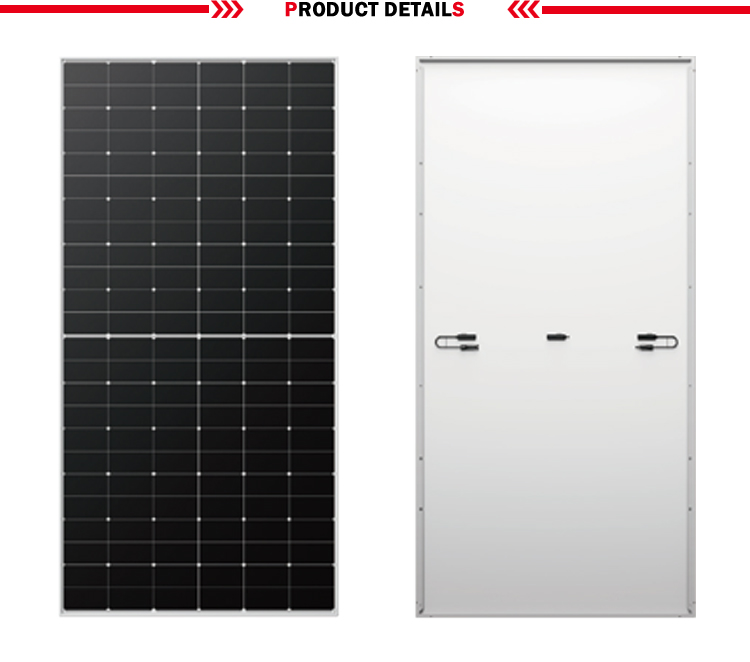

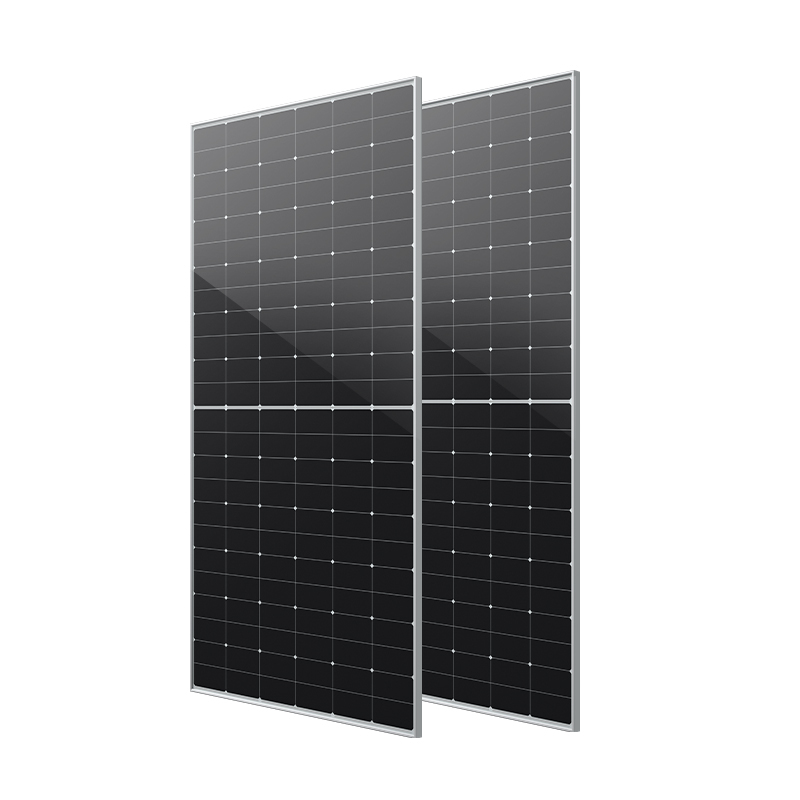

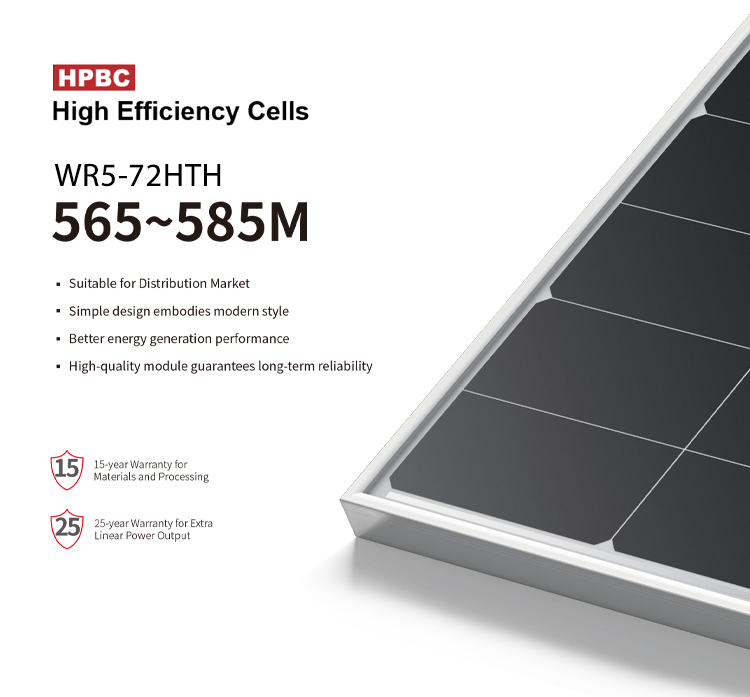

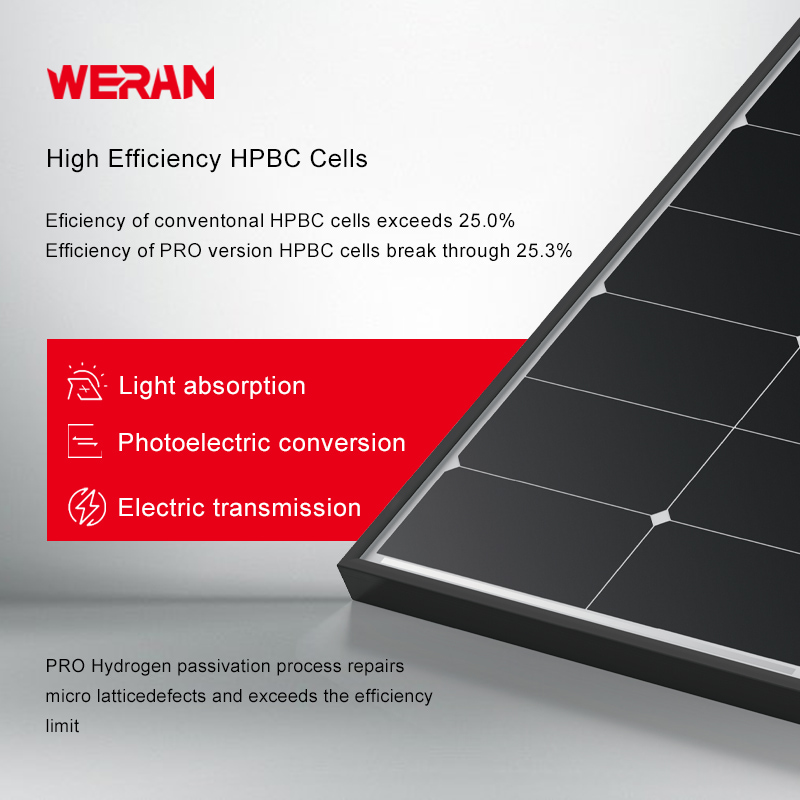

WERAN WR5-72HTH series solar panels are designed for commercial and residential projects, utilizing advanced HBPC technology to eliminate busbars, enhancing both aesthetics and efficiency. Our products have obtained multiple certifications such as CE, TUV, and CSA, and offer up to 15-30 years of after-sales service.
Model :
WR5-72HTH 565-585MPower range :
565-585wMinimum order quantity :
1 pallet (36 pcs)Max efficiency :
22.6%Cell orientation :
144 (6×24)Dimensions :
2278×1134×30mmWeight :
27.2kgCertificate :
CE, TUV, CSAWarranty :

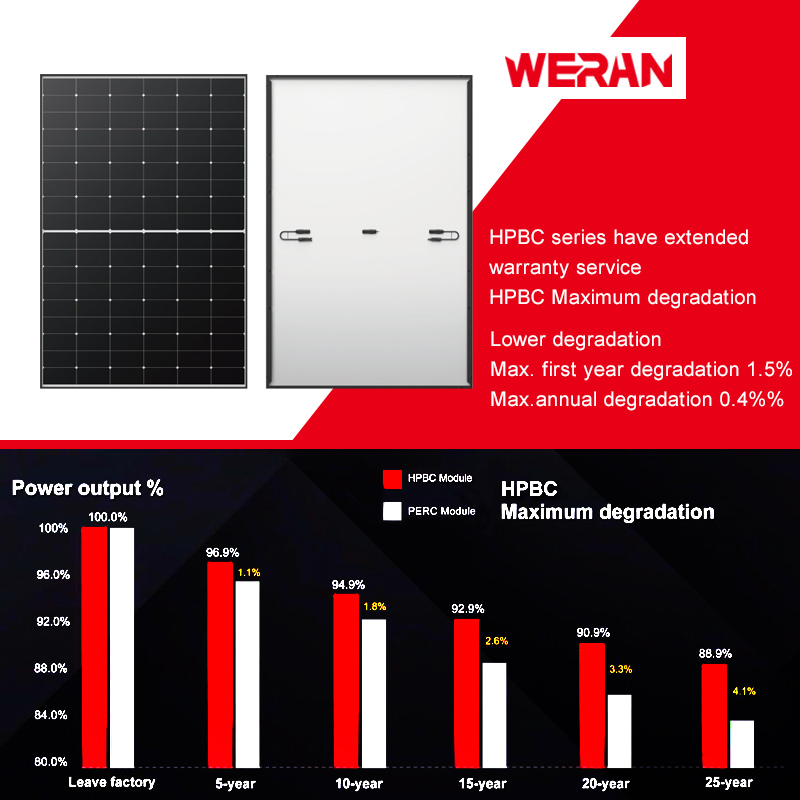

25 YearsPackaging :
36pcs per pallet / 180pcs per 20’GP / 720pcs per 40’HCPayment :
T/T, L/C, Western Union, Alibaba.com Pay
| Test conditions | STC : AM1.5 1000W/m2 25℃ Test uncertainty for Pmax:±3% | ||||
| Module Type | WR5-72HTH-565M | WR5-72HTH-570M | WR5-72HTH-575M | WR5-72HTH-580M | WR5-72HTH-585M |
| Testing Condition | STC | STC | STC | STC | STC |
| Maximum Power (Pmax/W) | 565 | 570 | 575 | 580 | 585 |
| Open Circuit Voltage (Voc/V) | 51.76 | 51.91 | 52.06 | 52.21 | 52.36 |
| Short Circuit Current (Isc/A) | 14.01 | 14.07 | 14.14 | 14.2 | 14.27 |
| Voltage at Maximum Power (Vmp/V) | 43.61 | 43.76 | 43.91 | 44.06 | 44.21 |
| Current at Maximum Power (Imp/A) | 12.96 | 13.03 | 13.1 | 13.17 | 13.24 |
| Module Efficiency(%) | 21.9 | 22.1 | 22.3 | 22.5 | 22.6 |
Mechanical Parameters
| Cell Orientation | 144 (6×24) |
| Junction Box | IP68 |
| Output Cable | 4mm2,+400,-200mm/±1400mm length can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 27.2kg |

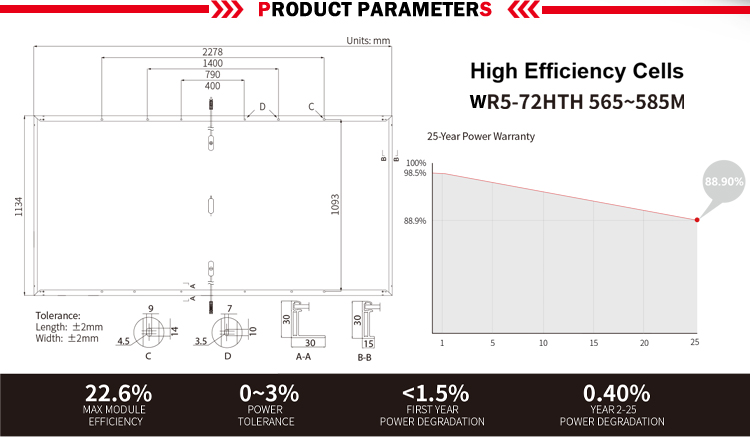

| Dimension | 2278×1134×30mm |
| Packaging | 36pcs per pallet / 180pcs per 20'GP / 720pcs per 40'HC |
Operating Parameters
| Operational Temperature | -40℃ ~ +85℃ |
| Power Output Tolerance | 0 ~ 3% |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2℃ |
| Protection Class | Class II |
| Fire Rating | UL type 1 or 2 IEC Class C |
Mechanical Loading
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
Temperature Ratings（STC）
| Temperature Coefficient of Isc | +0.050%/℃ |
| Temperature Coefficient of Voc | -0.230%/℃ |
| Temperature Coefficient of Pmax | -0.290%/℃ |
