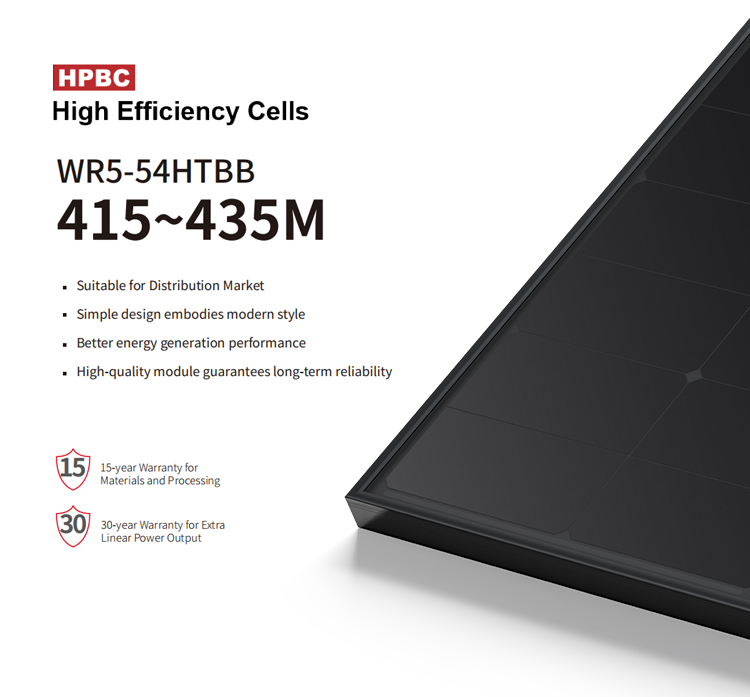

WERAN WR5-54HTBB series solar panel features an all-black design with a minimalist style, making it very suitable for installation on residential rooftops and the exterior surfaces of commercial buildings. The compact size and slightly lighter weight of this solar panel do not create excessive difficulties during installation, thereby helping to lower certain installation costs.
Model :
WR5-54HTBB 415-435MPower range :
415-435WMinimum order quantity :
1 pallet (36 pcs)Max efficiency :
22.3%Cell orientation :
108 (6×18)Dimensions :
1722×1134×30mmWeight :
22.5kgCertificate :
CE, TUV, CSAWarranty :
30 YearsPackaging :
36pcs per pallet / 216pcs per 20’GP / 936pcs per 40’HCPayment :
T/T, L/C, Western Union, Alibaba.com PayWERAN HPBC Solar Panel 415-435W
Electrical Characteristics
| Test conditions | STC : AM1.5 1000W/m2 25℃ Test uncertainty for Pmax:±3% | ||||
| Module Type | WR5-54HTB-415M | WR5-54HTB-420M | WR5-54HTB-425M | WR5-54HTB-430M | WR5-54HTB-435M |
| Testing Condition | STC | STC | STC | STC | STC |
| Maximum Power (Pmax/W) | 415 | 420 | 425 | 430 | 435 |
| Open Circuit Voltage (Voc/V) | 38.83 | 39.03 | 39.23 | 39.43 | 39.63 |
| Short Circuit Current (Isc/A) | 13.78 | 13.85 | 13.93 | 14 | 14.08 |
| Voltage at Maximum Power (Vmp/V) | 32.56 | 32.76 | 32.96 | 33.16 | 33.36 |
| Current at Maximum Power (Imp/A) | 12.75 | 12.83 | 12.9 | 12.97 | 13.05 |
| Module Efficiency(%) | 21.3 | 21.5 | 21.8 | 22 | 22.3 |
Mechanical Parameters
| Cell Orientation | 108 (6×18) |
| Junction Box | IP68 |
| Output Cable | 4mm2,±1200mm length can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 20.8kg |
| Dimension | 1722×1134×30mm |
| Packaging | 36pcs per pallet / 216pcs per 20'GP / 936pcs per 40'HC |
Operating Parameters
| Operational Temperature | -40℃ ~ +85℃ |
| Power Output Tolerance | 0 ~ 3% |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2℃ |
| Protection Class | Class II |
| Fire Rating | UL type 1 or 2 IEC Class C |
Mechanical Loading
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
Temperature Ratings（STC）
| Temperature Coefficient of Isc | +0.050%/℃ |
| Temperature Coefficient of Voc | -0.230%/℃ |
| Temperature Coefficient of Pmax | -0.290%/℃ |
