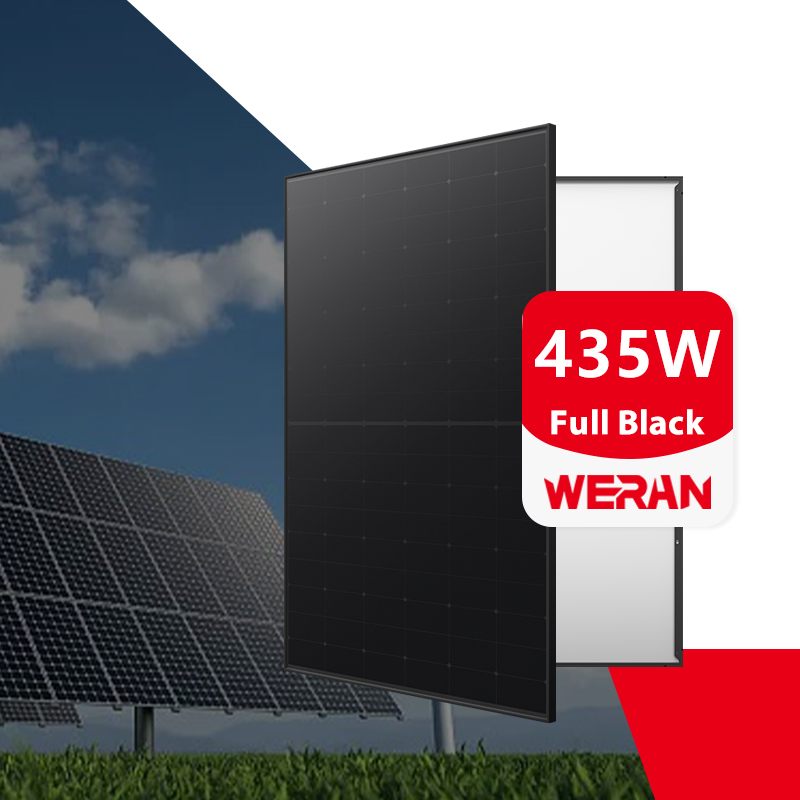

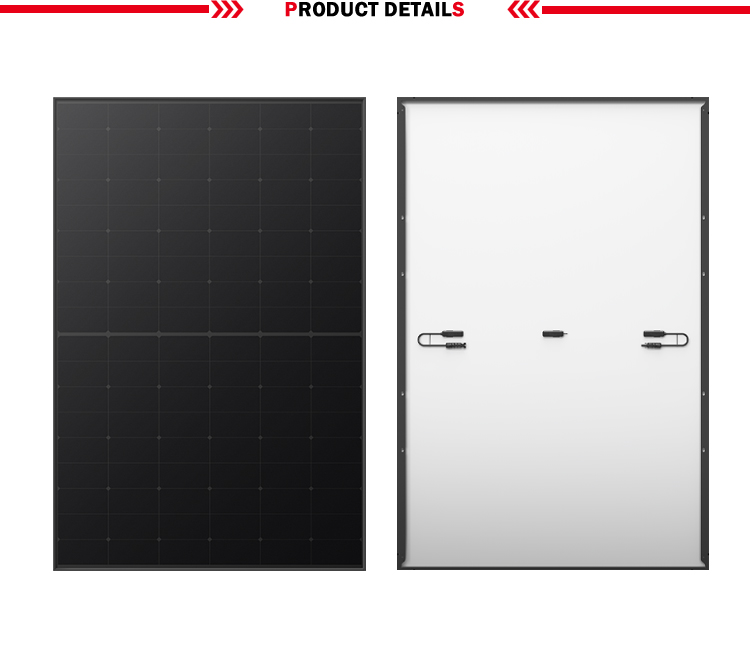

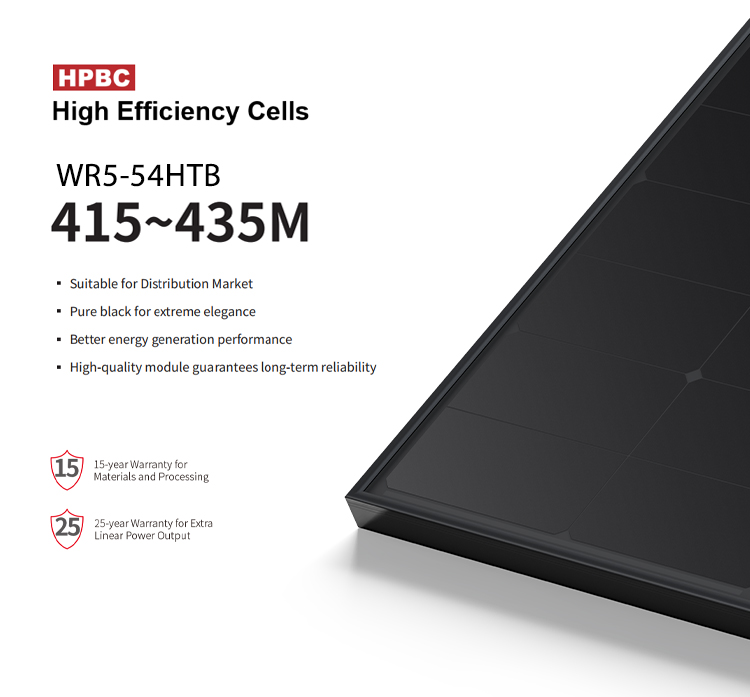

Choose the WERAN WR5-54HTB series solar panel for a touch of minimalistic elegance on any rooftop. This all-black solar solution is not only visually appealing but also designed to be installer-friendly with its compact build and lighter weight, which may help in lowering installation fees.
Model :
WR5-54HTH 415-435MPower range :
415-435WMinimum order quantity :
1 pallet (36 pcs)Max efficiency :
22.3%Cell orientation :
108 (6×18)Dimensions :
1722×1134×30mmWeight :
20.8kgCertificate :
CE, TUV, CSAWarranty :
25 YearsPackaging :
36pcs per pallet / 216pcs per 20’GP / 936pcs per 40’HCPayment :
T/T, L/C, Western Union, Alibaba.com PayWERAN HPBC Solar Panel 415-435W
Electrical Characteristics
| Test conditions | STC : AM1.5 1000W/m2 25℃ Test uncertainty for Pmax:±3% | ||||
| Module Type | WR5-54HTB-415M | WR5-54HTB-420M | WR5-54HTB-425M | WR5-54HTB-430M | WR5-54HTB-435M |
| Testing Condition | STC | STC | STC | STC | STC |
| Maximum Power (Pmax/W) | 415 | 420 | 425 | 430 | 435 |
| Open Circuit Voltage (Voc/V) | 38.83 | 39.03 | 39.23 | 39.43 | 39.63 |
| Short Circuit Current (Isc/A) | 13.78 | 13.85 | 13.93 | 14 | 14.08 |
| Voltage at Maximum Power (Vmp/V) | 32.56 | 32.76 | 32.96 | 33.16 | 33.36 |
| Current at Maximum Power (Imp/A) | 12.75 | 12.83 | 12.9 | 12.97 | 13.05 |

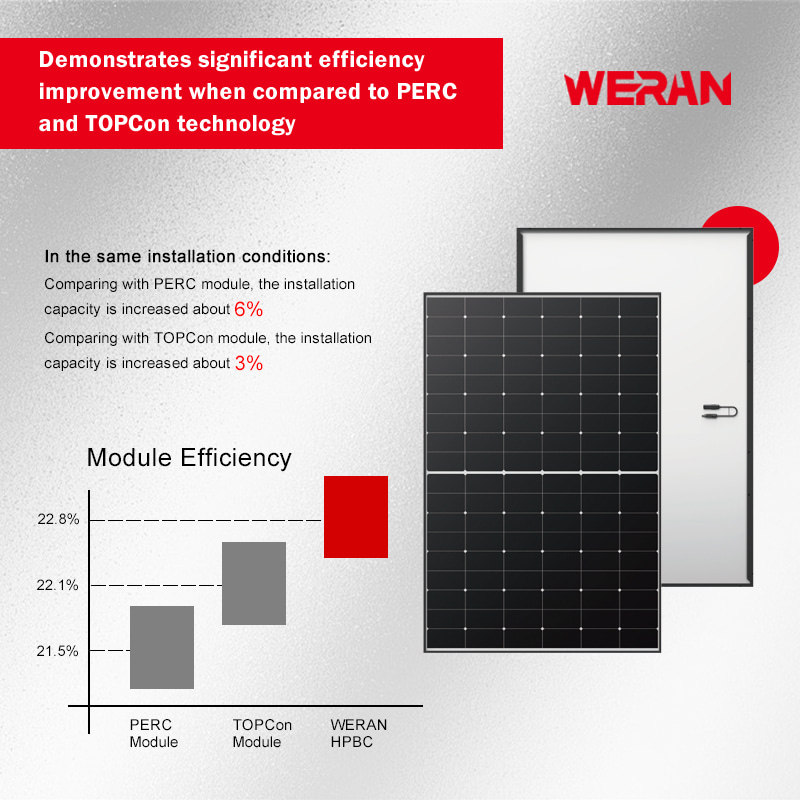

| Module Efficiency(%) | 21.3 | 21.5 | 21.8 | 22 | 22.3 |
Mechanical Parameters
| Cell Orientation | 108 (6×18) |
| Junction Box | IP68 |
| Output Cable | 4mm2,±1200mm length can be customized |
| Glass | Single glass, 3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Weight | 20.8kg |
| Dimension | 1722×1134×30mm |
| Packaging | 36pcs per pallet / 216pcs per 20'GP / 936pcs per 40'HC |
Operating Parameters
| Operational Temperature | -40℃ ~ +85℃ |
| Power Output Tolerance | 0 ~ 3% |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Nominal Operating Cell Temperature | 45±2℃ |
| Protection Class | Class II |
| Fire Rating | UL type 1 or 2 IEC Class C |
Mechanical Loading
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
Temperature Ratings（STC）
| Temperature Coefficient of Isc | +0.050%/℃ |
| Temperature Coefficient of Voc | -0.230%/℃ |
| Temperature Coefficient of Pmax | -0.290%/℃ |
